JS-ICON Series wall-mount dimmer racks represent the ultimate value in hi-performance dimming! Next generation "system-on-a-chip" technology coupled with state-of-the-art inductor technology provides unsurpassed quality in professional grade SCR dimming. Advanced next generation hardware and software designs reduce stand-by power consumption to less than 1 Watt, allowing for compliance with the International Energy Agency's "One Watt Initiative" for standby power consumption. This makes JS-ICON Series the "greenest" dimmer racks available! Available in a number of different sizes and configurations, JS-ICON Series dimmer racks are designed for side-by-side installation and high density requirements.
Intuitive LCD user interface combined with dual DMX inputs, analog inputs and contact closure inputs allow for industry wide application. Removable cover allows for ease of installation and serviceability. On demand "MagLev®" thermal management technology produces superior cooling that is virtually silent making JS-ICON the natural choice for "quiet space" dimming installations. Exclusive "lamp warming" techniques extends lamp life considerably while maintaining industry leading performance!
Emlight price $2800.00
Emlight price $3650.00
Emlight price $3750.00
Emlight price $3495.00
JS-ICON Series dimmers deliver the ultimate value in hi-performance distributed dimming. Designed to set a new standard, the rugged and simple design is ideal for use in applications where conventional "centralized dimmers" are not appropriate or cost prohibitive. Simple to install and operate, these dimmers can significantly lower electrical installation costs. A dedicated "contractor section" with a choice of terminal strip or magnetic breakers. Large wire capacity input permits feeder power up to 60 Amps at 120/240 Volt single phase or 40 Amps at 120/208 Volt three phase. Designed for ease of installation and service with removable front panels and hinged control section access, future "installed location" servicing of high voltage receptacles or electronic controls is fast and easy. Large hi-performance chokes and "MagLev®" thermal management technology produces superior cooling that is virtually silent. All electronics are easily and remotely monitored with intuitive status LED's. High-resolution (16 bit) fade standard. Wireless DMX 512 receiver optional.
JS-ICON Terminal Block (TB) versions

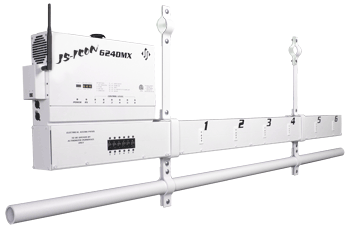

JS-ICON 624 DMX-TB 6x2.4kW dimmers c/w TLG (L520R) outputs MSRP $2350.00 Emlight price $2230.00
JS-ICON Magnetic Breaker (MB) versions
JS-ICON 624 DMX-MB 6x2.4kW dimmers c/w TLG (L520R) outputs MSRP $2600.00 Emlight price $2450.00
JS-ICON portable dimmers deliver the ultimate value in high performance portable dimming. Designed to set a new standard, this rugged design is ideal for use in applications where multiple location dimming is required. Large input wire capacity permits feeder power up to 60 Amps at 120/240 Volt single phase or 40 Amps at 120/208 Volt three phase! Designed for ease of installation and service with removable top panel for control section access. Future servicing of high voltage receptacles or electronic controls is fast and easy. Large high performance chokes and "MagLev®" thermal management technology produces superior cooling that is virtually silent. All electronics are easily monitored with intuitive status LED's. Optional wireless DMX 512 receiver and a high-resolution (16 bit) fade make this dimmer a star performer in the portable category!
Emlight Design is proud to distribute Johnson Systems Inc.’s dimmers.
